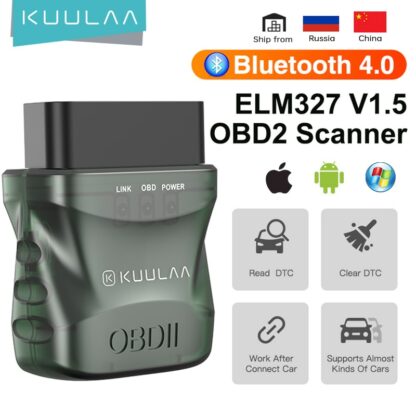

KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

$30.57

Choose an option
Choose an option
China
Russian Federation
Choose an option
Choose an option
Bluetooth 4.0 V015
Clear

SKU: 1005002475674476

Description

  • Brand Name: kuulaa
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Special Features: Bluetooth
  • Software Version: Latest Version
  • Software Update: Yes
  • Hardware Version: V1.5
  • Item Type: Code Readers & Scan Tools
  • Item Function: OBD2 Diagnostic Scanner Tool
  • Item Name: ELM327 V1.5 Bluetooth 4.0 Code Reader
  • Feature: OBD OBD2 BT4.0 Scanner
  • Operating Systems: For Android/iPhone/PC
  • Special Function: Read/Clear Fault Code
  • Support model: Most of OBDII vehicle models
  • Features: Bluetooth 4.0 OBDII Car Diagnostic Scanner
  • Software platform: Support for iOS/Android /Windows
  • Special Features: Bluetooth 4.0
  • Working humidity: less than 60%
  • Main control chip: MM32L073
  • Oscillator frequency: 24mhz

Before purchasing, please check in the website if your car suitable for this product, or contact us directly, Thank you !!! https://www.outilsobdfacile.com/vehicle-list-compatible-obd2.php

Please watch the video for the different connection methods of iPhone and Android

The OBD2 Scanner Oscillator frequency is 24mhz.
The product is not PIC18F25K80, it support ATPPS commands and can be used with FORSCAN, but it does not guarantee that all functions on this software can be used. (FORSCAN is a software specially used to change some ECU parameters of Ford cars.)

KUULAA ELM327 V1.5 Bluetooth 4.0 ELM 327 OBD2 Scanner Diagnostic Adapter Scan Tool OBD OBDII Code Reader For iOS Android Windows

ELM327 V1.5 BT4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.

ELM327 V1.5 BT4.0 Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear the error codes and turn off the MIL (“Check Engine” indicator)
Displays current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection advance time
Intake air temperature
Air Flow Rate
Absolute throttle position
Oxygen probe voltage associated with short-term fuel status
Fuel system status
Fuel pressure
There are many other data available for fuel consumption monitoring …

Software Platforms

1. Compatible software
Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.
Symbian version: OBDScope. 2.
2. Compatible Platforms
Software support platform: Windows XP, Windows 7/8/10, Android, Symbian, etc.

Support Protocol

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPD (10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP ( 5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,250 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)

Bluetooth 4.0 OBDII Car Diagnostic Scanner

Diagnose Engine Trouble Code
Clear Engine Trouble Code
Car Information Reading
Work After Connect Car
Supports Almost Kinds Of Cars
Small & Convenient

He69303eccc8f43e7b89b28e98e61f389K KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII ReaderH51c9b5434e294855b775dc4651ee3c8eO KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

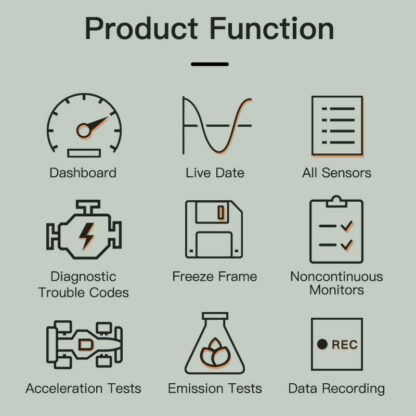

Product Function

Dashboard Live Date All Sensors
Diagnostic Trouble Codes Freeze Frame
Noncontinuous Monitors Acceleration Tests
Emission Tests Data Recording

H1f74e092c7e9461b8aac5dc62b19ee07U KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Are you experiencing these problems?

New driver
4s shops are expensive to maintain
Check for breakdowns before traveling

H313c5b54fdb6421e8ee3ee3bcc2e1a06k KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

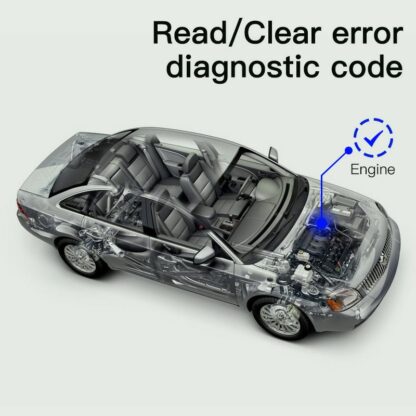

Read/Clear error diagnostic code

Engine

H41c9b40e7a054989b85528fe913162b1i KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

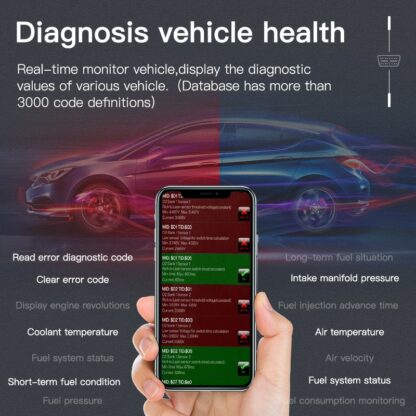

Diagnosis vehicle health

Real-time monitor vehicle ,display the diagnostic values of various vehicle.(Database has more than 3000 code definitions)
Read error diagnostic code
Clear error code
Display engine revolutions
Coolant temperature
Fuel system status
Short-term fuel condition
Fuel pressure
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Air temperature
Air velocity
Fuel system status
Fuel consumption monitoring etc.

Hd0695480960647faacdebe6bd099c62bE KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Detect fuel consumption and mileage

Real-time display of vehicle fuel quantity, vehicle speed, rotation speed, mileage, temperature, air pressure and other data, master all vehicle data.

Habe01c8edf8440c4ab8482bd09cb89b1a KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

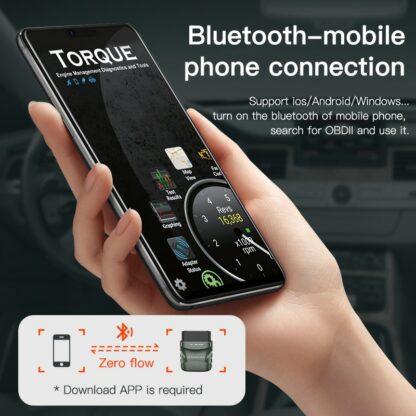

Bluetooth-mobile phone connection

Support ios/Android/Windows…turn on the bluetooth of mobile phone, search for OBDII and use it
*Download APP is required

Heff88ad81ecc48ecafac3fb809ab9bf1A KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

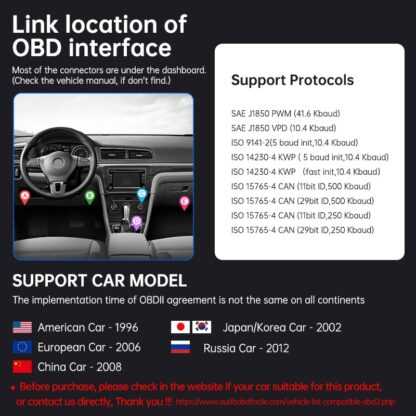

Link location of OBD interface

Most of the connectors are under the dashboard.(Check the vehicle manual, if don’t find.)
Area A: VW、 Ford、Toyota、Hyundai、 Citroen、 BMW、etc./Most cars.
Area B: Honda, Lexus,etc.
Area C: Dongfeng Citroen,etc.
Area D/E : A few cars…

Hdc0b545f63384273834928216001f362W KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Details Show

Exquisite workmanship, personality and fashion
Non-slip design
Bottom LED light
16-pin OBD connector
ABS fireproof material

Hd0541c72f40f480299f4bd7f314090baX KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Product parameters

Brand:KUULAA
Name:Bluebooth OBDII Car Diagnostic Scanner
Model:KL-DW006
Bluetooth version:4.0
Working voltage:12V
Working current:32mA
Operating temperature:-40~80℃
Storage temperature:-30~80℃
Main chip: mm32l073
Software platform:support Android/Windows/IOS…
Product weight:24g
Product size:57*24.2*46.2mm
Color:Black-green
Package Included:1x Auto Scanner

H5740586febed43e4ab4dc0ca4977d7f30 KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII ReaderHd9929bcc8039445f94c92dac8e8d617eB KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Packing list

OBDII Diagnostic Scanner *1
User Manual*1

H0c9a8e2d13f54d569e204a7abbaf1f28r KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

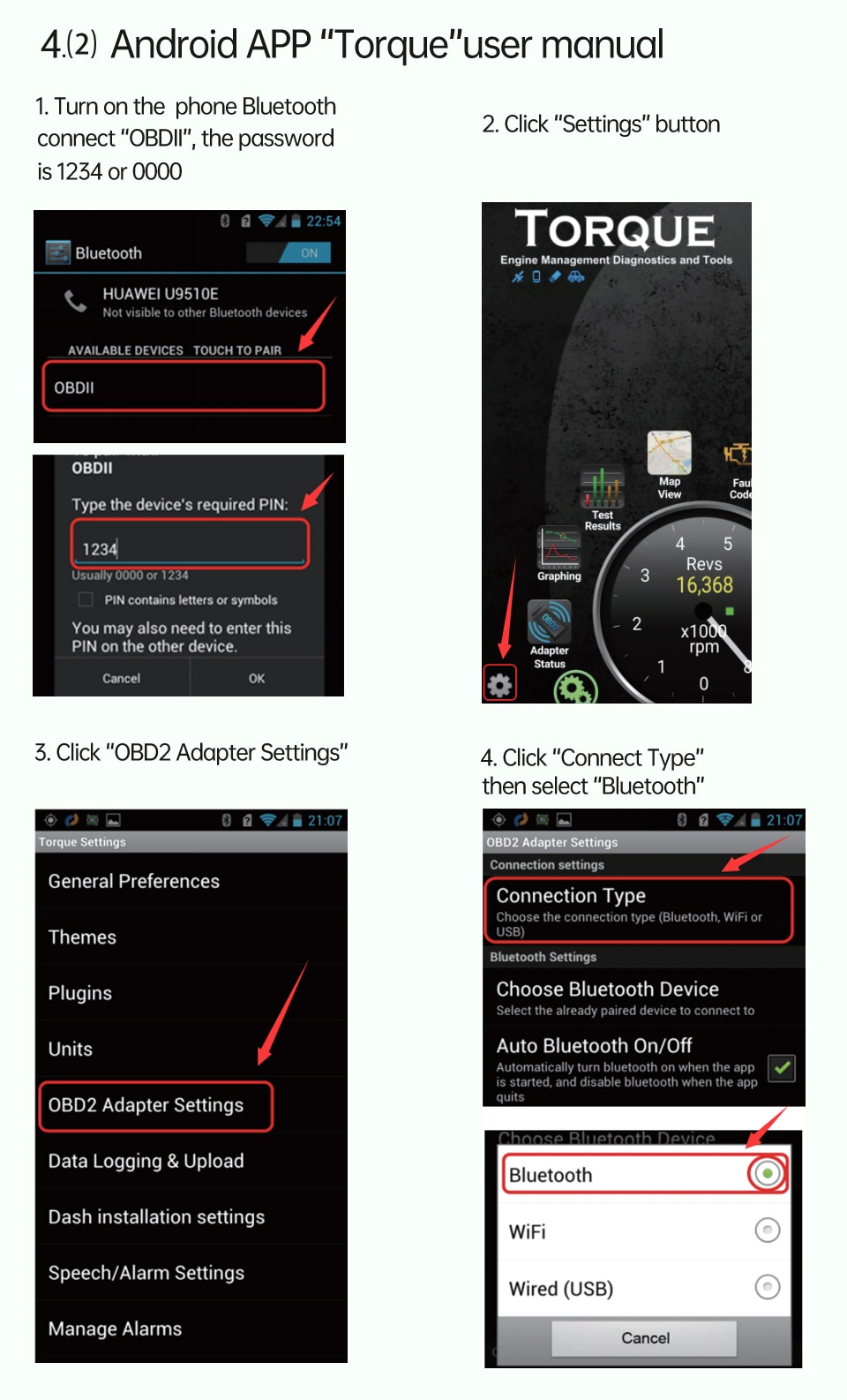

Connection steps

H7f642853684e4c57bb1b3d6c3bc66371L KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII ReaderH8c5fe5bc2b4248fa93b0d575727330dbg KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader
H90592a6c76464277920aae7b8c038e8dE KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII ReaderHb0602a42786b47118e071b6b78037658A KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader
Hccb6c18e9d33493aa6189fc0bb2ee3b4w KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII ReaderH0fd50829704e41c0a4f27d43ae0b221aS KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader
